Waste Paper Cellulose Recycling Line

What is a waste paper cellulose recycling line?

A waste paper cellulose recycling line is an integrated processing system designed to convert paper waste into separated cellulose fiber. It can handle newspapers, books, cartons, office paper, corrugated board and similar paper-based feedstock. The line typically combines feeding, primary shredding, magnetic separation, hammer milling or fiberizing, enclosed conveying and final screening to deliver a cleaner, adjustable fiber output.

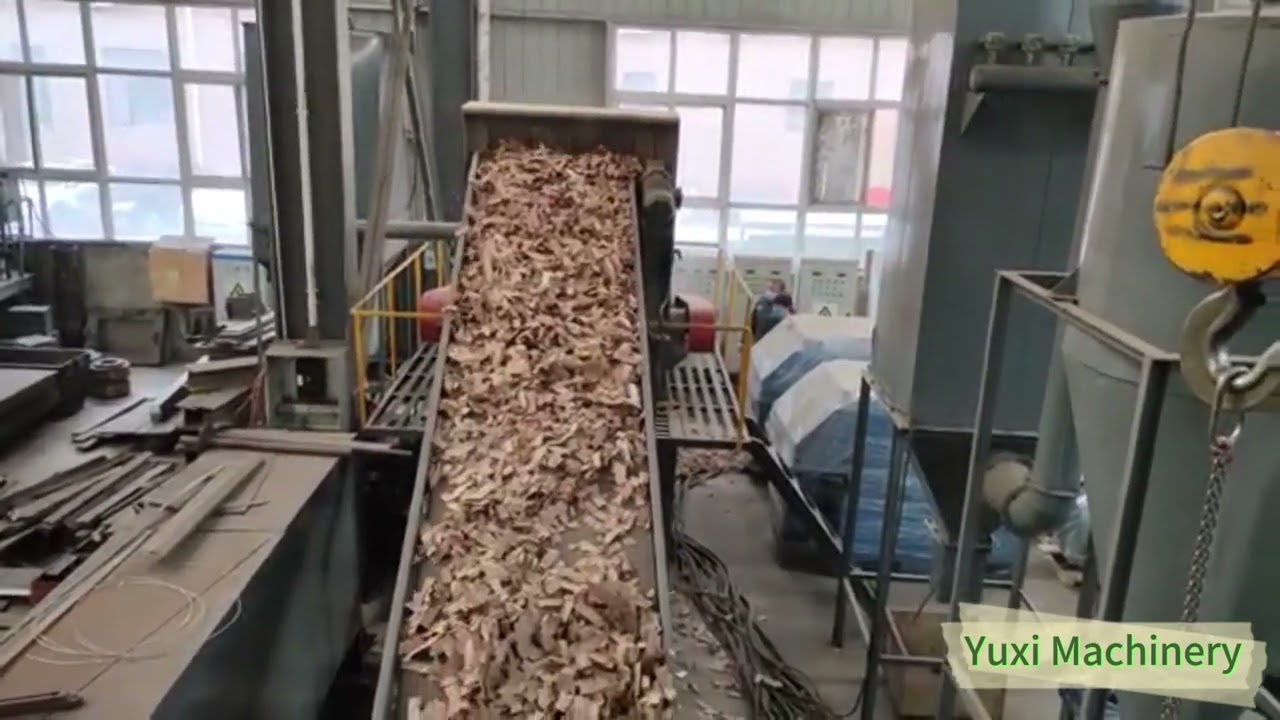

Recycling Line Video

Main applications

• Building insulation: cellulose fiber can be used in thermal and acoustic insulation systems.
• Road and asphalt construction: processed fiber can be used in selected construction applications.
• Paper converting and mill recovery: recover valuable fiber from production scrap and packaging waste.
• Protective filling material: suitable for packaging or stuffing applications where low-density fiber is needed.
• Downstream material preparation: the line can be configured as a front-end fiber liberation solution for further processing.

Working principle and processing flow

1. Feeding and pre-treatment: waste paper is loaded by conveyor or hopper. Optional pre-sorting can be added to remove oversized contaminants.
2. Primary shredding: cartons, books and mixed paper are reduced into smaller chips for stable downstream processing.
3. Magnetic separation: ferrous contaminants such as staples and wires are removed to protect the fiberizing equipment.
4. Fiberizing stage: a hammer mill or similar machine opens the paper structure and releases the cellulose fiber.
5. Enclosed conveying and dust control: sealed screw conveyors, conveyors or pneumatic transport help keep the working environment cleaner.
6. Screening and discharge: the output size can be adjusted by the screen configuration to match the intended application.

Why choose Yuxi Shredder Tech for this solution

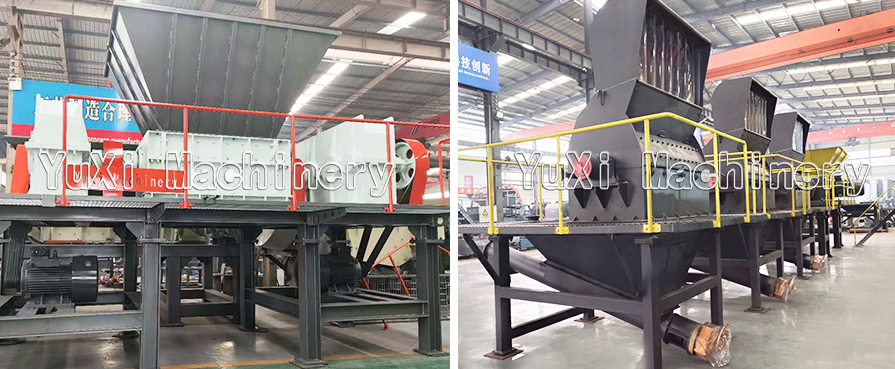

Integrated line design

We can configure shredding, iron removal, fiberizing, conveying and dust collection as a complete solution rather than a single standalone machine.

Adapted to your feedstock

The line can be tailored for newspapers, office paper, corrugated boxes, cartons, mixed printed paper or paper mill waste.

Capacity-based configuration

Different motor sizes, conveyor arrangements and chamber designs can be matched to project capacity and layout requirements.

Cleaner production

Enclosed transport and dust-collection options help improve workshop cleanliness and support stable continuous operation.

Durable wear parts

Wear-resistant blades, screens and impact components help extend service life under industrial conditions.

Factory direct support

From pre-sales selection to layout advice, shipment and after-sales communication, we support the full project process.

Typical technical parameters

The table below is a sample configuration reference. Final power, footprint and output depend on raw material condition, moisture, impurity level and target fiber specification.

Suitable raw materials

Old newspapers, office paper, corrugated cartons, books, printed paper, paper tube trim, packaging waste and selected paper mill waste.

Optional modules

Auto feeder, metal separator, dust collection, additive dosing, custom discharge sizing, pneumatic transport, platform and access structure.

What you can tell us for a fast quotation

Raw material type, moisture level, contamination level, target capacity, preferred final output and installation space.

Frequently asked questions

What materials can this line process?

It is mainly designed for paper-based waste such as newspapers, books, cardboard, corrugated board and similar cellulose-rich feedstock.

Can the final fiber size be adjusted?

Yes. Output can be influenced by screen configuration, machine selection and the overall process setup.

Can you customize the line?

Yes. We can recommend different shredder sizes, separator configurations, conveying methods and dust-control systems according to the project.Do you support layout planning and quotation?

Yes. Provide your material information and capacity target, and we can propose a suitable equipment combination and quotation basis.

Get a quotation for your project

Need help with a project?

We can help you configure a waste paper cellulose recycling line around your feedstock, target capacity and end-use requirements.

Recommended inquiry details: raw material, hourly capacity, final output requirement, country of installation and expected project timeline.
